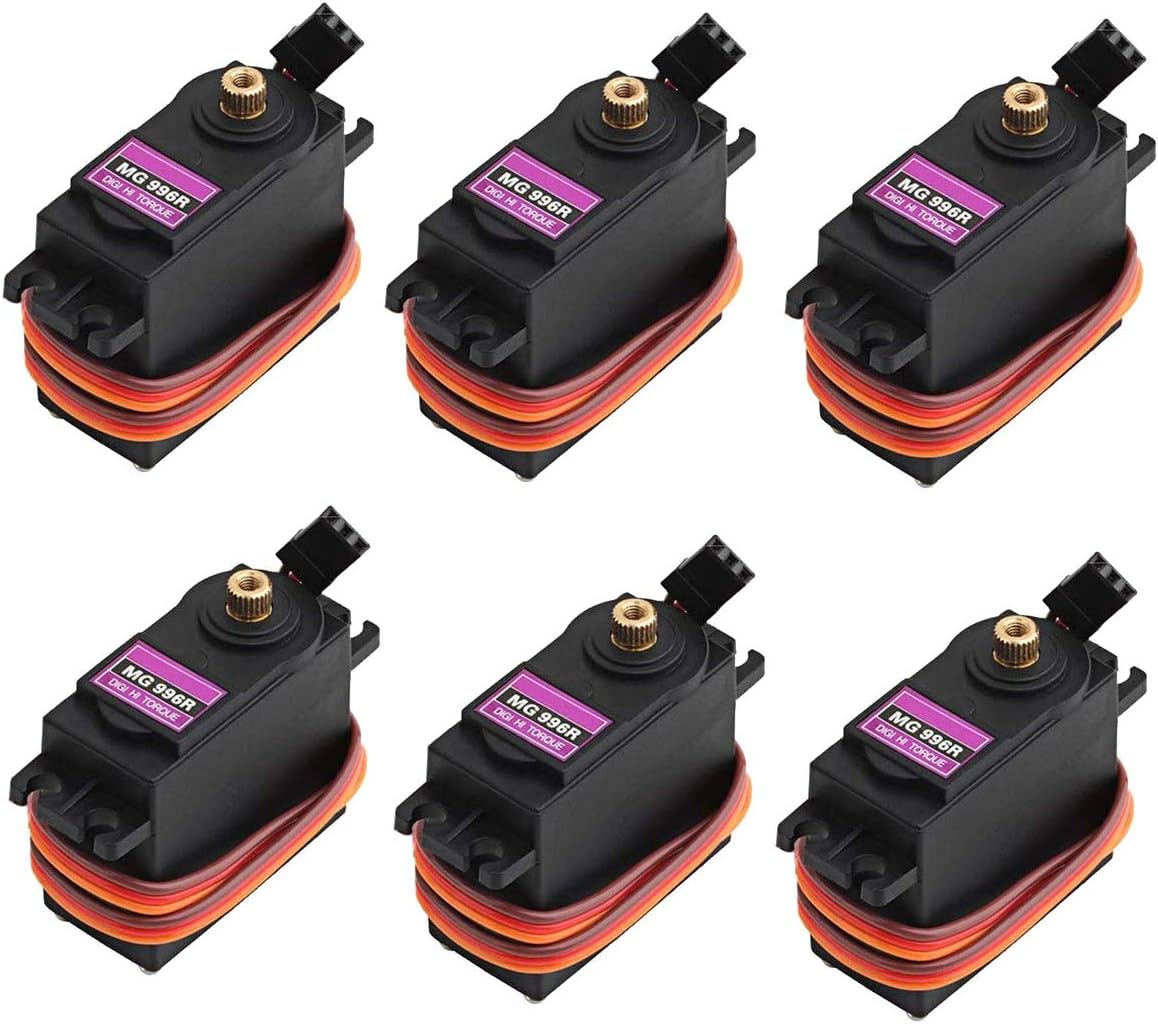

6PCS MG996R Servo Motor Metal Gear Servo Motor Torque Digital Servo Motor High Speed Torque Servo Motor for Smart Car Robot Boat RC Helicopter Compatible Arduino Raspberry Pi Project

Price: $27.99
(as of Feb 02, 2025 00:31:28 UTC – Details)


Specifications:
Products Name: MG996R Digital servo
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Gear type: 5 metal
Dimension: 40.5mm20mm39.5mm
Operat voltage: 4.8V 6.0V
No load speed: 0.17sec/60° 0.15sec/60°
Runnig current: 160mA 170mA
Peak stall torque: 13.5kg.cm 15.2kg.cm
Stall current: 1800mA±10% 2200mA±10%
Command signal Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Notes:
1.For engine powered airplane and boats, rubber must be used to reduce vibration.
2.Torque over-loaded will damage the servo’s mechanism.
3. Please choose correct model for your application.
4. Keep the servo clean and away from dust, corrosive gas and humid air.
Package Included
6 * MG996R Micro Servo motor
WHY CHOOSE IT: This MG996R Servo motor which updated from SG90 and MG90S micro servo motor. (the Speed, Tension and Accuracy allincrease).This high-speed standard servo motor can rotate 180 degrees (90 in each direction).
WIDE APPLICATIONS: The MG996R Servo model Good performance digital standard servo, compliant with most standard receiver connector,for Futaba, Hitec, Sanwa, GWS etc. Which can be a common use for robots, mechanical arms, climbing cars and remote control toys.
ELECTRICAL SPECIFICATION: The MG996R Servo Torque at 4.8V 13.5kg/cm, 6V 15.2kg/cm. Positioning speed at 4.8V without load 0.17s / 60 degrees;6.0V without load 0.15s / 60 degrees. Recommended voltage: 5V, current use: 3A.
STABLEPERFORMANCE：Stable and shock-proof iron core motor, metal gears, power supply through external adapter.
Tips: If you’re not completely satisfied for any reason, simply return it or contact us.Your 100% satisfaction is our goal.
