WM8960 Audio HAT Module for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/Pi Zero WH,WM8960 Hi-Fi Sound Card HAT Stereo CODEC, Play/Record

Price: $21.90
(as of Feb 02, 2025 21:47:09 UTC – Details)


WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record
Overview
This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what’s more, it can directly drive speakers to play music.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Integrates WM8960 low power stereo CODEC, communicates via I2S interface Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
Onboard standard 3.5mm earphone jack, play music via external earphone, Onboard dual-channel speaker interface, directly drives speakers, Supports sound effects such as stereo, 3D surrounding, etc. Comes with development resources and manual (python demo code for playing / recording)
Specifications
CODEC: WM8960
Power supply: 5V
Logic voltage: 3.3V
Control interface: I2C
Audio interface: I2S
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16Ω@3.3V)
Speaker driver: 1W per channel (8Ω BTL)

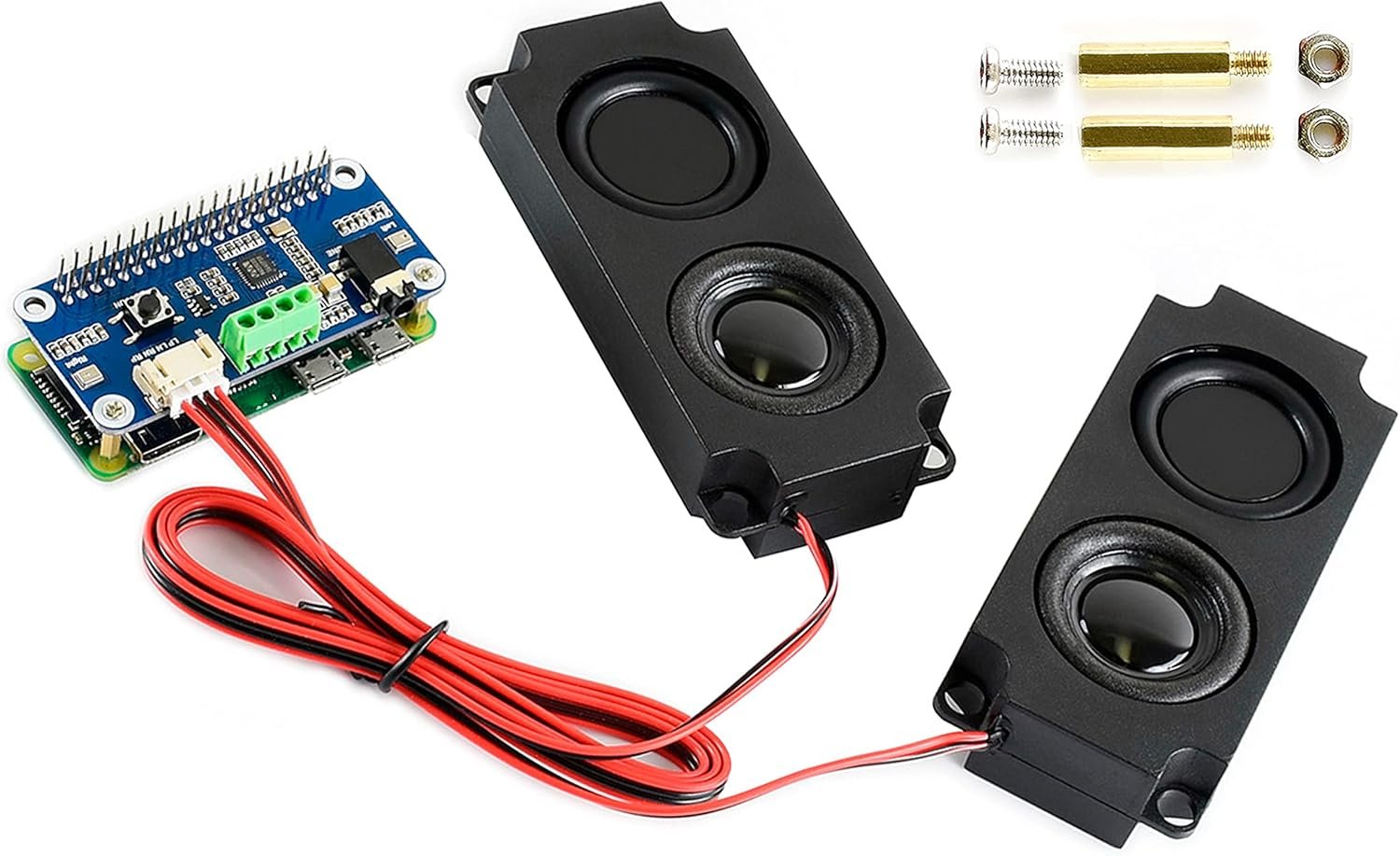

Package Content
WM8960 Audio HAT x1
8Ω 5W Speaker x1
RPi screws pack (2pcs) x1
Note: Raspberry Pi in the photos is NOT included.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Integrates WM8960 low power stereo CODEC, communicates via I2S interface.
Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality.
Onboard standard 3.5mm earphone jack, play music via external earphone.
Onboard dual-channel speaker interface, directly drives speakers, Supports sound effects such as stereo, 3D surrounding, etc.
Comes with development resources and manual (python demo code for playing / recording).
